OpenRAMAN

OpenRAMAN EDU Kit

Product Code: 0200000000004

The OpenRAMAN EDU Kit is our flagship sale and contains everything required to start working with Raman spectroscopy and maintain your instrument performance.

The EDU Kit contains our base spectrometer with a 4.5 mW laser, a standard liquid cuvette with 100 vials and our maintenance kit.

All EDU Kits are shipped with an exclusive teaching support manual that contains experiments to perform with the spectrometer, information on Raman spectroscopy and examples of Q&A for students.

in stock6,999.00 €

Span Range

500-3,500 cm⁻¹

Compatible with most non-halogenated organic chemicals

Resolution

35 cm⁻¹

Adapted to educational spectroscopy of common organic solvents

Laser Power

4.5 mW

Ideal for students, Class 3R laser

Description

OpenRAMAN Base Spectrometer

The base spectrometer is the perfect starting point in Raman spectroscopy. It features a 4.5 mW laser which can readily be used by students in the context of a classroom experiment. It is sufficient to identify most non-halogenated solvents and powders although its resolution is somewhat limited compared to the upgraded spectrometers.

Want to move further? The OpenRAMAN base spectrometer can easily be upgraded with more accurate or powerful laser, lower noise cameras or enhanced filter sets.

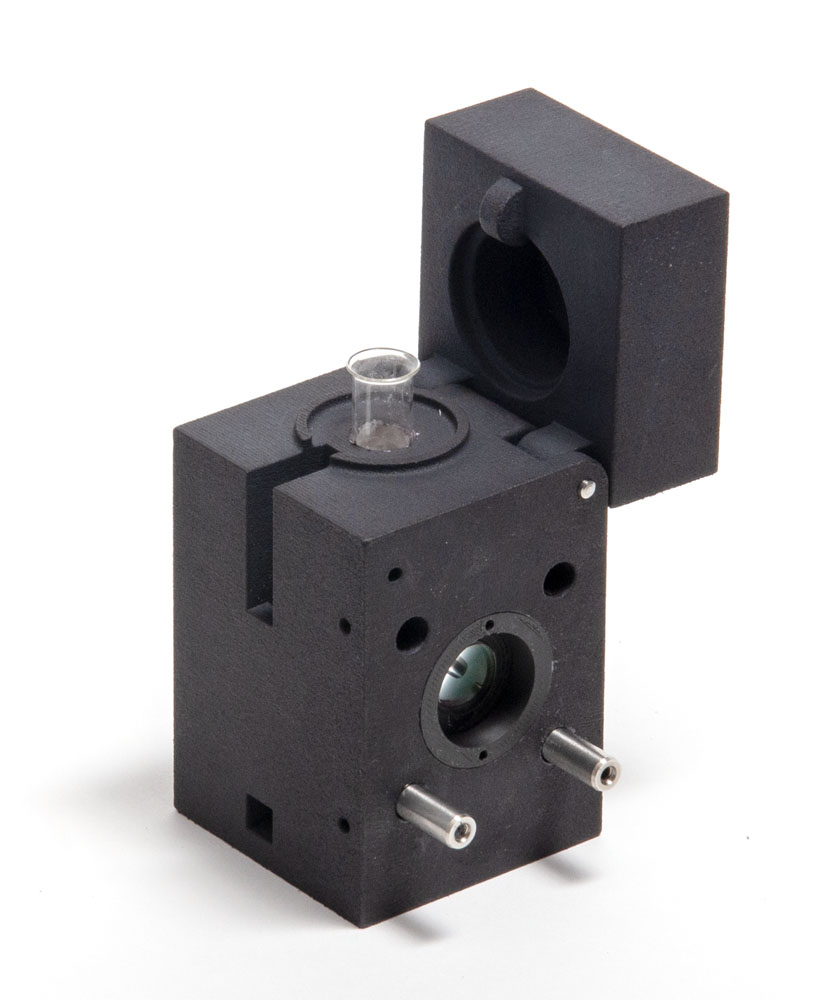

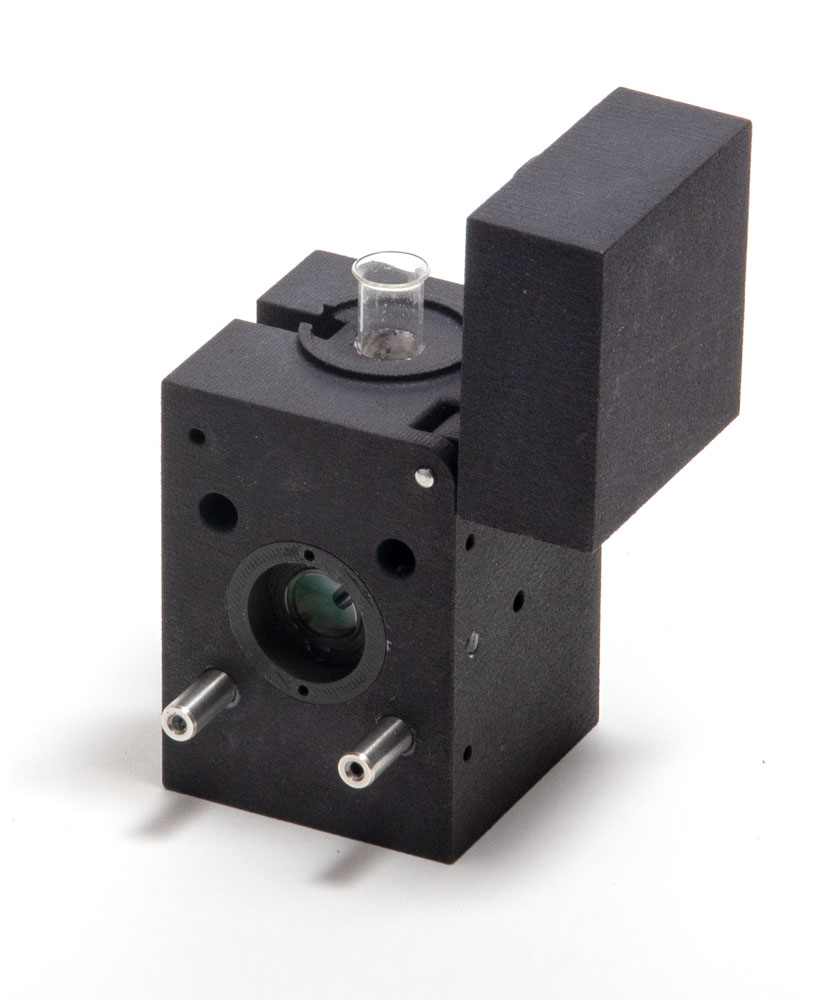

Standard Liquid Cuvette

The standard liquid cuvette is our reference historical cuvette, designed for clear liquids like organic solvents (acetone, isopropanol, ethanol etc.). It uses low-cost test-tubes that can be re-used as long as chemicals are not adsorbed onto the tube.

Because the standard liquid cuvette focuses light at the center of the vial, it is insensitive to Raman glass-peak contamination which typically occurs near 3000 cm-1.

Maintenance Kit

The maintenance kit contains all required accessories to fully re-assemble and maintain an OpenRAMAN base spectrometer. The kit contains a neon spectral lamp for the re-calibration of the spectrometer.

The maintenance kit does not contain consummible parts and can be used to align as many base spectrometer as required.

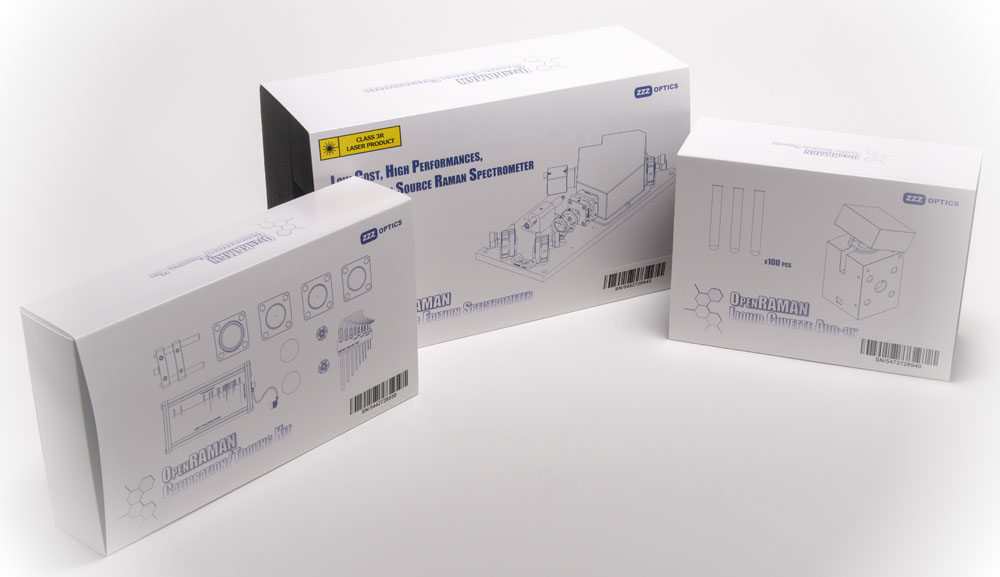

Box Content

The base spectrometer is shipped assembled and calibrated with a Certificate of Calibration.

The base spectrometer package contains:

  • An OpenRAMAN base spectrometer with 4.5 mW laser
  • A laser power supply
  • An ethernet switch with ethernet patch cables
  • An assembly/maintenance manual
  • The SpectrumAnalyzer software

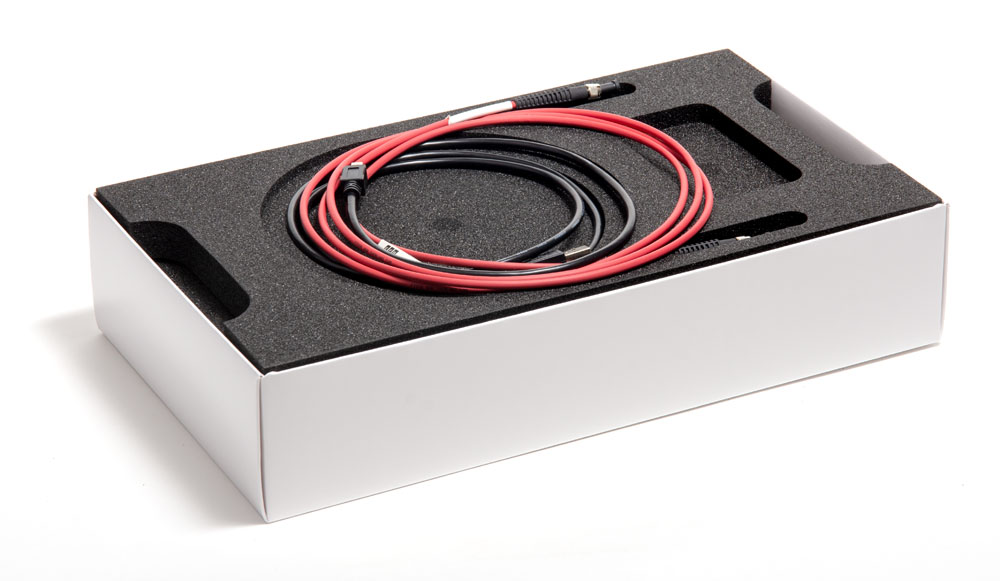

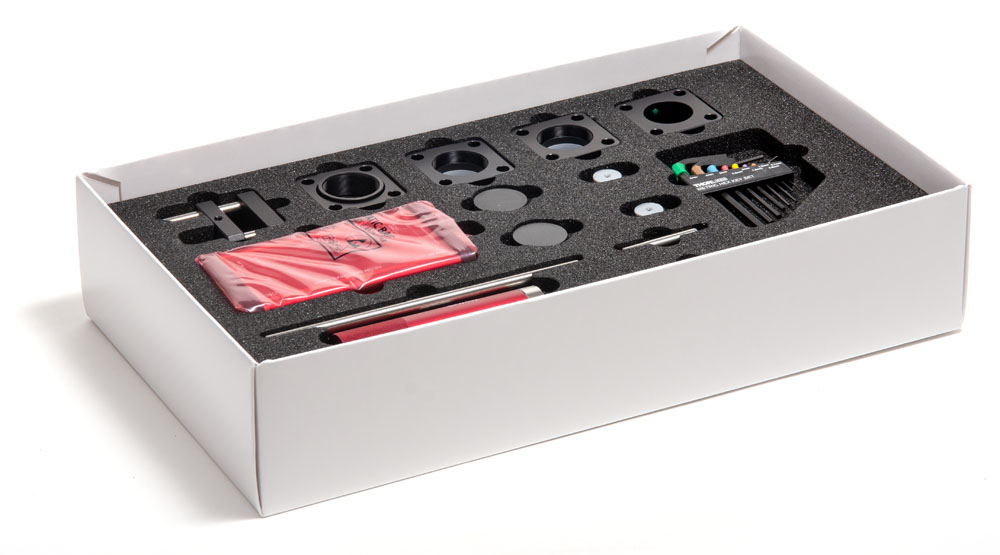

The maintenance kit package contains:

  • Collimation optics & fiber
  • A neon spectral lamp
  • Various alignements targets
  • Spanner wrench and set of Allen keys

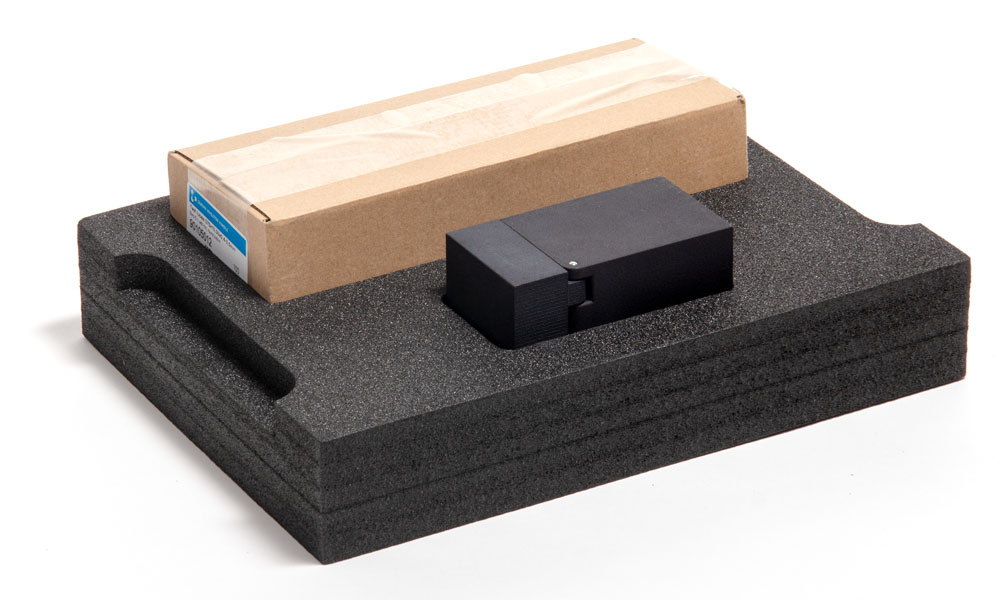

The standard liquid package contains:

  • A standard liquid cuvette
  • 100 test tubes

Replacement vials for the standard liquid cuvette can be obtained on request.
